Product Description:
Beam Splitter Features:
The loss is not sensitive to the wavelength of the transmitted light, meets the transmission requirements of different wavelengths, has low insertion loss, uniformity, good directivity, and excellent optical performance.
Beam Splitter Advantages:
All-fiber construction, good environmental stability, low polarization-dependent loss, low back reflection, compact structure, small size, can be installed in various existing junction boxes, without requiring a large installation space.
Splitter Principle:
The optical splitter is a passive device that does not require external energy and does not need to be powered on, as long as there is an input optical signal. A fiber optic splitter is a fiber optic passive device that splits and combines optical signals.
Spectroscope Use:
The optical splitter is widely used for network cabling, fiber-to-the-home systems, limited television networks, passive optical networks, and fiber-optic LANs. The installation speed of the device is fast and the operation is convenient. Generally, the installation can be completed in about 30 seconds (except for the fiber preparation time).

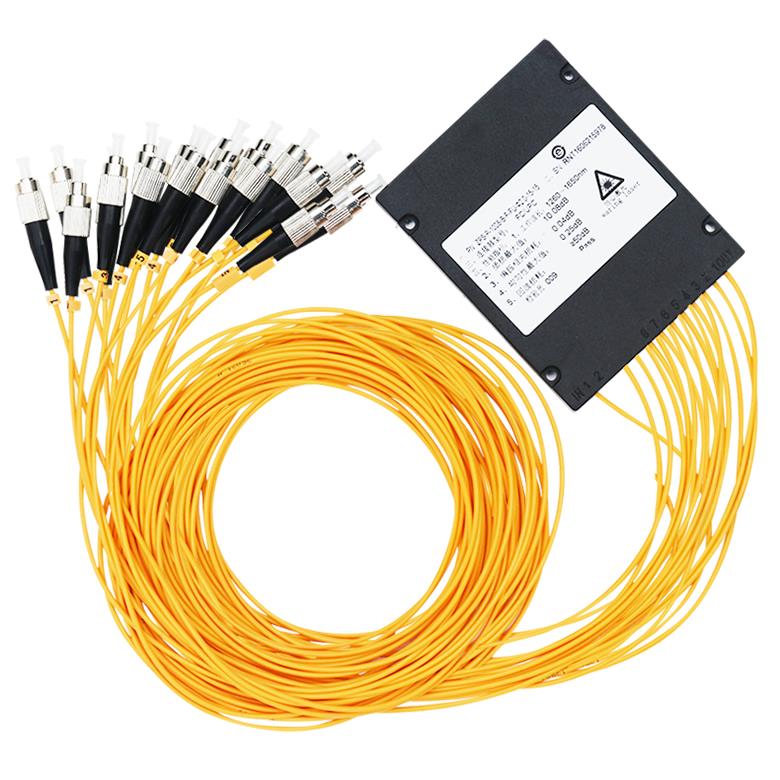

Image:
Characteristics:
* Excellent parameters on IL & RL
* High channel counts
* Exceptional reliability and stability
* Wide Operating Wavelength
* Wide Operating Temperature
* Convenient engineering applications
Application:
* CATV network
* LAN, WAN and MAN
* Testing equipments
* Fiber optic communication system
* FTTX access network based on PON structure
Specifications:
| Parameters |
1x2 |
1x4 |
1x8 |
1x16 |
|
|
Center Wavelength (Nm) |
ITU, ITU+1 |
||||
|
Passband (Nm) |
ITU±6.5 |
||||
|
Operating Wavelength (Nm) |
1460~1620 Or 1260~1620 |
||||
|
Channel Space (Nm) |
20 |
||||
|
Fiber Type |
SMF-28e Or Customer Specified |
||||
|
IL (DB) (P/A Grade) |
0.7/1.0 |
1.4/1.7 |
2.0/2.5 |
3.5/4.0 |
|
|
Isolation (DB) |
Adjacent Channel |
30 |
|||
|
Non-Adjacent Channel |
50 |
||||
|
Ripple (DB) |
0.3 |
0.4 |
0.5 |
0.5 |
|
|
PDL (DB) |
0.2 |
||||
|
PMD (Ps) |
0.1 |
||||
|
RL (DB) |
45 |
||||
|
Directivity (DB) |
50 |
||||
|
Maximum Optical Power (Mw) |
500 |
||||
|
Operating Temperature (℃) |
-40~85 |
||||
|
Storage Temperature (℃) |
-40~85 |
||||
|
BOX Package (Mm) |
100*80*10 |
140*115*18 |
|||
|
LGX Package |
1U, 2U |
||||
|
19" Rack Mount Package |
1U |
||||
