SC/UPC Connector ABS Module Type Fiber Splitter For Network
General Description:
Fiber optic couplers are used for splitting light from one fiber into two or more with low excess loss and high back reflection. Coupler can also combine signals from two or more fiber into one.
Our coupler are available in bare fiber and ruggedized package. We adopt fused biconical taper(FBT)technique. In the process, the fibers are twisted, heated, pulled.
The pulling continues with output fiber actively monitored until the correct splitting ratio is achieved.
And the fused fiber are then environmentally sealed.
Yogel offers both both tree and star type inline couplers/splitters. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x64 ports for tree couplers, and from 2x2 up to 16x16 for star couplers. Single, dual and three wavelengths windows are available.
1. Features
Low excess loss
Excellent directivity
Good channel-to-channel uniformity
Low PDL
High cost-effectiveness
High environmental and mechanical stability
2. Application
a. Asynchronous Transmission Mode(ATM) Package for 100PCS:
b. Passive optical networks (PON)
c. Fiber to The Home (FTTH) Package dimensions: 46 X 33 X 23 CM
d. Local Area Networks (LAN)
e. Cable Television (CATV)
f. Test Equipment

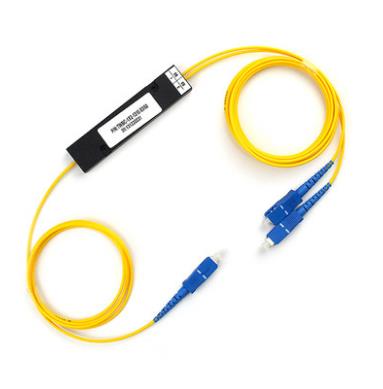

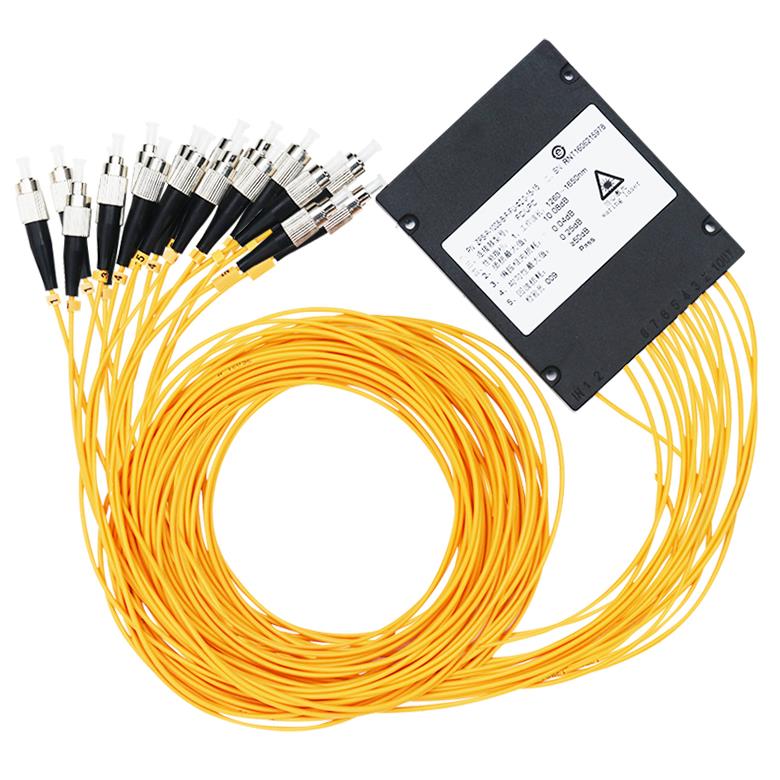

3. Image Detail
4. Specification
| Ports |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
|
Operating Wavelength (Nm) |
1260~1650 |
||||||
|
Insertion Loss (DB) |
Max(P/S) |
3. 8/4. 0 |
7. 1/7. 3 |
10. 2/10. 5 |
13. 5/13. 7 |
16. 5/16. 8 |
20. 5/21. 0 |
|
Loss Uniformity (DB) |
Max |
0. 6 |
0. 6 |
0. 8 |
1. 2 |
1. 5 |
2. 5 |
|
PDL (DB) |
Max |
0. 15 |
0. 15 |
0. 25 |
0. 3 |
0. 3 |
0. 3 |
|
Return Loss (DB) |
Min |
UPC:50 APC:55 |
|||||
|
Directivity (DB) |
Min |
55 |
|||||
|
Standard Input Fiber |
Bend Insensitive SM Single Fiber(ITU G. 657A) |
||||||
|
Standard Output Fiber |
Bend Insensitive SM Ribbon Fiber(ITU G. 657A) |
||||||
|
Standard Output Color |
Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B) |
||||||
|
Max. Optical Power(Mw) |
300 |
||||||
|
Humidity Range(Rh) |
5%~85% |
||||||
|
Operating Temperature(℃) |
-40~+85 |
||||||
|
Storage Temperature(℃) |
-40~+85 |
||||||
|
Connector Options |
FC/SC/LC/ST/MU |
||||||
|
Packaging Options |
Bare Device*Mini Tube*ABS Module*LGX Box*19"/23" Rack-Mount |
||||||
|
*Telcordia GR-1221-CORE&G-1209-CORE Compliant. |
|||||||
|
*Premium Spec Available Upon Request. (P/S: Premium Grade/Standard Grade) |
|||||||
|
*Typical Value At +23℃ Without Connectors Losses. |
|||||||
Note: 1x2, 1x4 and 1x n customized couplers configuration available
Variety of connectors available
5. Ordering Information
|
XXX |
X |
X |
X |
X |
X |
XX |
|
Port |
Input Pigtall Style |
Input Connector |
Output Pigtll Style |
Fiber Length |
Output Connector |
Package Tube Type |
|
102=1x2 |
0=None |
0=None |
0=None |
0=0. 5m |
0=None |
B1=100x80x10 |
|
104=1x4 |
1=900um |
1=SC/PC |
1=900um |
1=1m |
1=SC/PC |
B2=120x80x18 |
|
108=1x8 |
Loose Tube |
2=SC/APC |
Loose Tube |
2=1. 5m |
2=SC/APC |
B3=142x102x14. 5 |
|
116=1x16 |
2=900um |
3=FC/PC |
2=900um |
3=2m |
3=FC/PC |
B4=141x115x18 |
|
132=1x32 |
Jacket |
4=FC/APC |
Jacket |
4=3m |
4=FC/APC |
RT=19 Inch 1U Rack |
|
164=1x64 |
3=2. 0cable |
5=ST |
3=2. 0cable |
5=4m |
5=ST |
SP=Special |
|
204=2x4 |
4=3. 0cable |
6=LC |
4=3. 0cable |
S=Special |
6=LC |
|
|
208=2x8 |
|
7=LC/APC |
|
|
7=LC/APC |
|
|
216=2x16 |
|
8=E2000 |
|
|
8=E2000 |
|
|
232=2x32 |
|
S=Special |
|
|
|
|
|
264=2x64 |
|
|
|
|
|
