Description

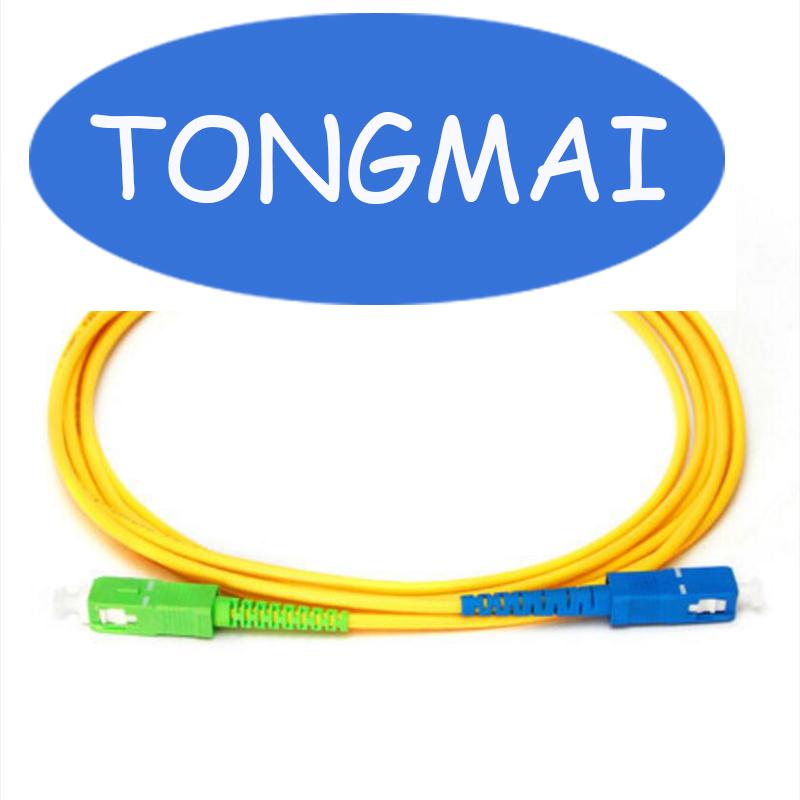

SX SM SC/APC-SC/UPC Patch Cord
The 9/125μm single mode fiber optic cable is suitable for enterprise network, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.
Features:
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Applications:
1. CATV system
2. Optical fiber communication
3. Testing equipment
4. FTTX
5. Fiber optic network convergence
6. Optical fiber access network
7. Fiber data transmission
8. Optical fiber video transmission
9. Fiber multimedia system
10. Fiber ethernet
11. Photo electric conversion system
Specifications:
|
Type |
Unit |
SC, LC,FC |
|||
|
Single-mode |
Multi-mode |
||||
|
PC |
UPC |
APC |
PC |
||
|
Insertion loss |
dB |
≤2 |
≤0.2 |
≤0.3 |
≤0.2 |
|
Return loss |
dB |
≥550 |
≥50 |
≥60 |
≥30 |
|
Wavelength |
nm |
1310,1510 |
|||
|
Interchangeability |
dB |
≤0.2 |
|||
|
Vibration |
dB |
≤0.2 |
|||
|
Operating temperature |
℃ |
-40~75 |
|||
|
Storage temperature |
℃ |
-45~85 |
|||
|
Cable diameter |
mm |
φ3.0,φ2.0,φ0.9 |
|||
|
|
