Description

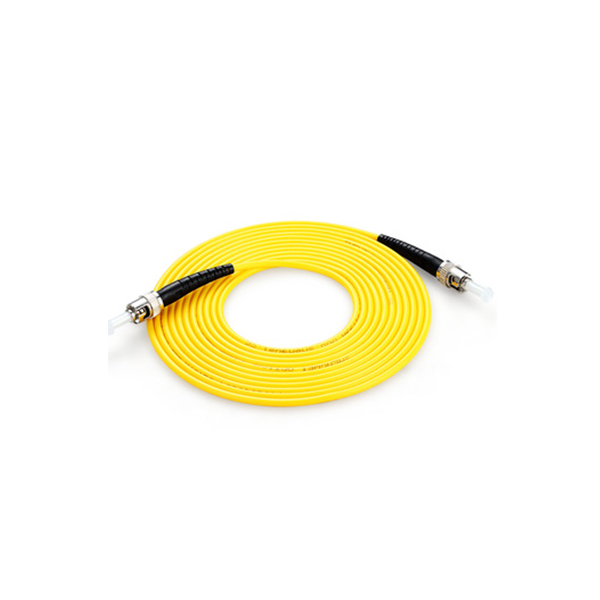

Simplex SM ST-ST Fiber Optic Patch Cord 1m 2m 3m 5m
Application
1.Machine room
2.FTTH
3.Area network
4.Test equipment
5.National defence
6.FO sensor
7.Light communication system
8.Common antenna TV system
Characteristics
1.Low insertion loss and high return loss.
2.High reliability and stability.
3.High tensile and bending performance.
- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
- Ferrule End-face: PC, UPC, APC
- Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
- Cable Quantity: Simplex, duplex or customized
- Cable Diameter: 3.0mm, 2.0mm, 0.9mm
- Cable Length: 1, 2, 3 meter or customized
- Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
