Description

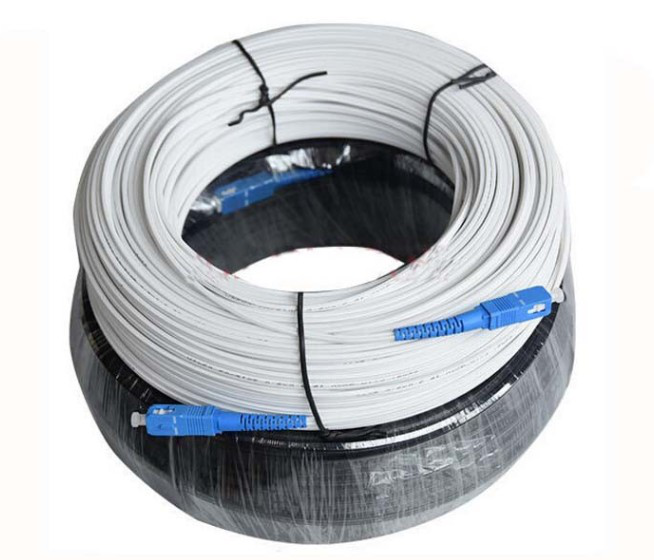

FTTH Fiber Optic Drop Cable Patch Cord
The solution for passing the fiber to the end-user is called FTTH, which means Fiber To The Home. As the development of FTTH project deployments, FTTH is easily affordable technology with many advantage, such as more bandwidth, reliability and low cost in order to meet the next generation customers' demand. FTTH can provide the customers with information such as DATA, VOICE, VIDEO (TRIPLE PLAY) using only one fiber. According to this situation, to better compatible with FTTH drop cable, a new type of connector-SC FTTH Connector, with PC, UPC, APC polishing, which has been well used in the FTTH project.
|
Specification |
|
|
Connector A |
SC |
|
Connector B |
SC |
|
Polish |
PC, APC, UPC |
|
Fiber mode |
Single-mode, 9/125um |
|
Fiber type |
G652D, G657A |
|
Wavelength |
1310/1550nm |
|

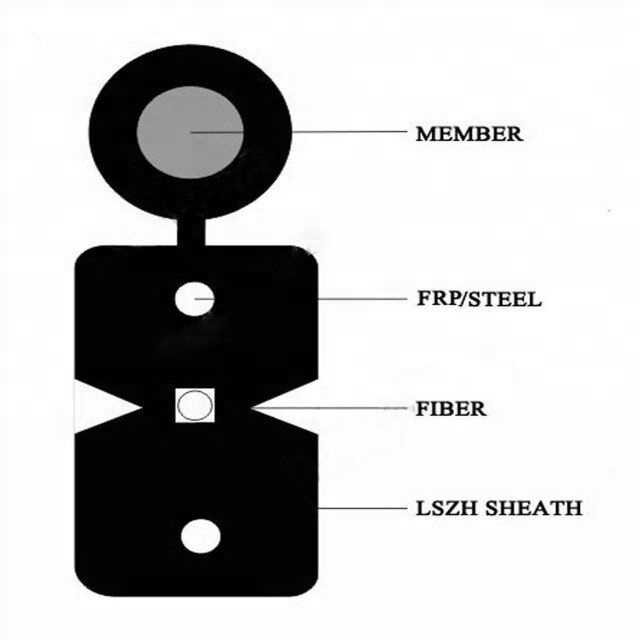

Cable diameter |
2.0*5.0mm or 2.0*3.0mm Flat |
|
Jacket material |
LSZH |
|
Jacket Color |
Black, White |
|
Numbers of Core |
1,2 |
|
Package |
1pcs per roll |
Features
PC/UPC/APC three types optional.
High return reflect loss and low insertion loss.
Single mode fiber and multimode fiber optional.
High reliability, stability, repeatability and good interchangeability.
interconnection between patch panel and terminal equipment
Main intermediated and horizontal cross-connects
Device Termination
Applications
1. CATV, metro test equipment;
2. Telecommunication networks;
3. Local area networks (LAN);
4. Wide area networks (WAN);
5. Premise installations;
6. FTTH projects.
Performance
Electrical insertion loss: PC≤0.3dB, UPC≤0.2dB, APC≤0.2dB, MTRJ≤0.5dB.Return loss:PC≥45dB, UPC≥50dB, APC≥65dB, MTRJ≥40dB.
Temperature Range: -40°C~+85°C
Frequency of usage: ≥1000 times
Repeatability: ≤0.2dB
