SM Duplex SC/UPC Fiber Optic Adapter
Product Description:
Easily connect your SC single mode duplex UPC polish type cables to each with this snap-in adapter. The SC duplex fiber optic adapters are made for our fiber distribution pedestal. Each fiber coupler fits securely into designated slots and is used to couple SC/UPC connections together inside of a fiber distribution unit.
Key Features:
1. SC style to SC style
2. Use in Single mode applications.
3. Free-hanging or panel-mount design.
4. Dust caps protect against debris and contamination
5. RoHS Compliant
Functions:
A cable to cable fiber optic connection
Cable to equipment fiber optic connection
Specifications:
|
Insertion Loss |
≤0.20dB |
|
Return Loss |
≥50dB |
|
Repeatability |
≤0.2dB |
|
Durability |
≤0.1 dB typical change, 500 matings |
|
Interchangeability |
≤0.2dB |
|
Tensile Strength |
>10kg |
|
Operating Temperature |
-40 ÷ 80°C |
|
Humidity Cycling |
75°C, 95% / 336hr |
|
Vibration |
10~55Hz (2hr) |
|
Impact |
1.5m drop, 8 Times |

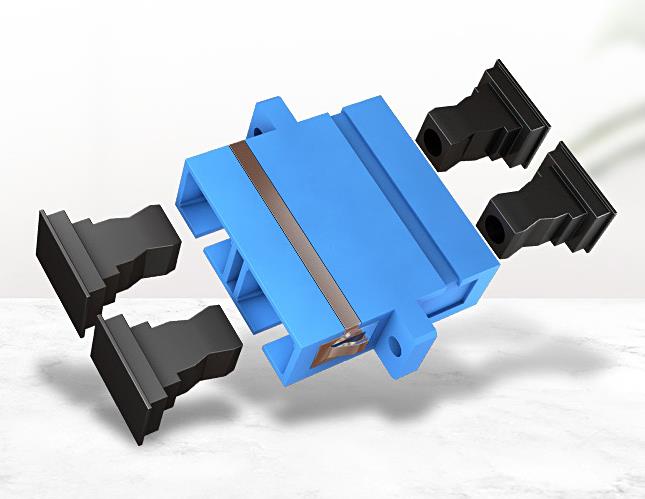

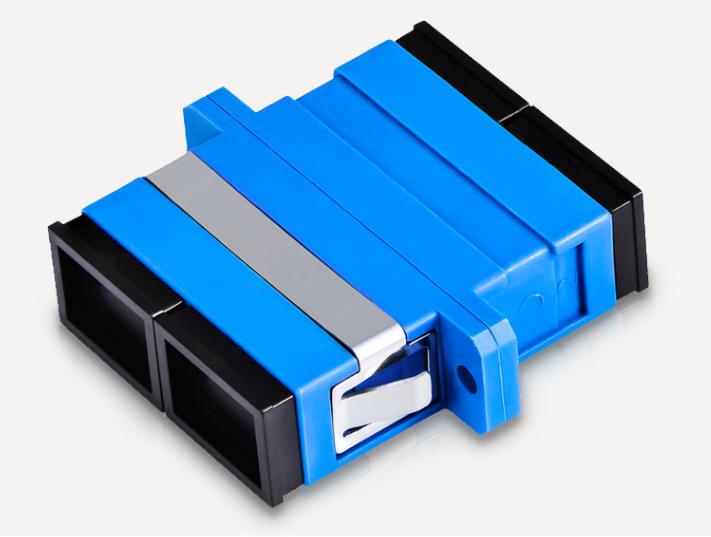

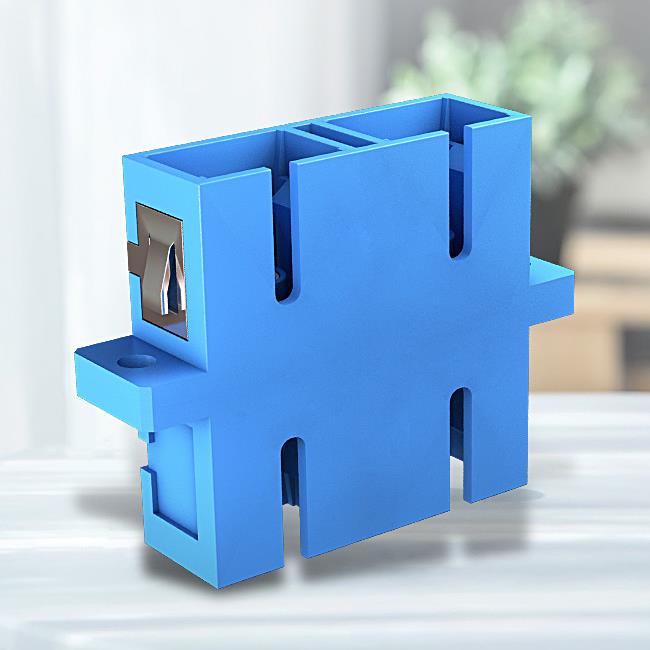

Image Detail:
