Description
Product Name: Fiber optic cable adapter
Description:
Commonly used fiber optic adapter are the female to male type, which is also called a plug fiber attenuator. They are with ceramic ferrules and there are various types to fit different kinds of fiber optic connectors. Fixed value fiber optic adapter can reduce the optical light power at a fixed level, for example, a 10dB SC fiber optic attenuator will reduce the optical power 10dB and utilize a SC male to female attenuator. Variable fiber optic adapter are with adjustable attenuation range. There are also attenuation fiber optic patch cables available, their function is same as adapter and are used inline.
Our fiber optic adapter are manufactured according to industrial standards, and they are 100% strictly tested during the production. These fiber optic adapter are prompt delivery and good prices.

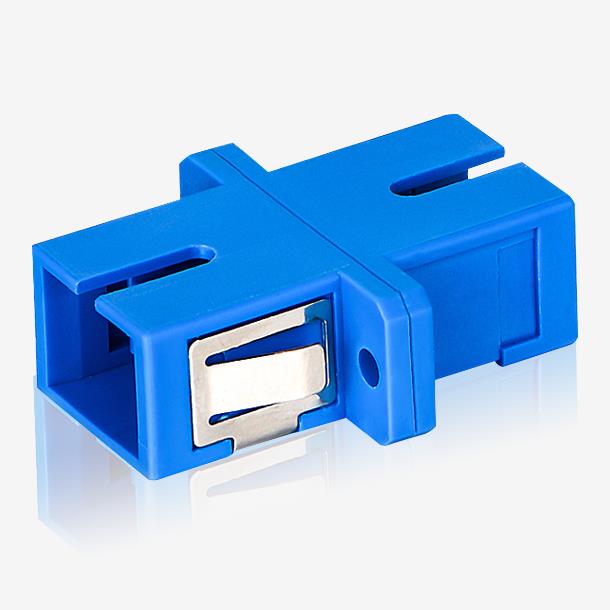

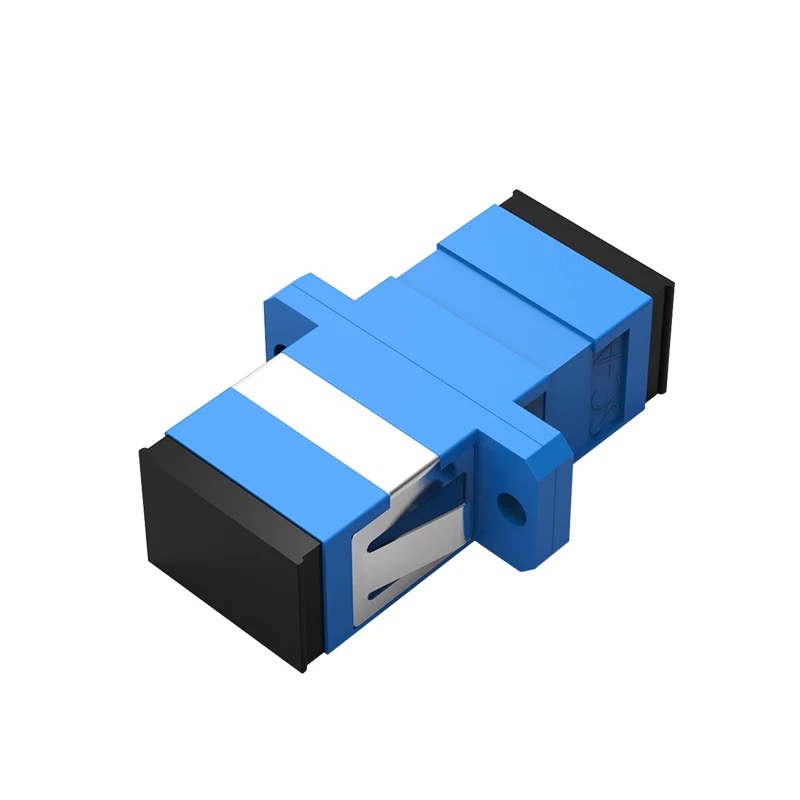

Image Detail:
Features:
1. High Return Loss
2. Exact and Stable Attenuation
3. Suitable for panel installation
4. Removable structure, easy to repair
Application:
1. Testing equipment
2. Fiber optical CATV
3. Fiber optical sensor
4. Various types of fiber
Parameter:
| Name |
China Supplier Optic Fiber Sc Sx Flange Sc Shutter Adapter |
|
Connection Locking Force |
≥70N |
|
Insertion Loss |
<0. 2dB |
|
Temperature Range |
-40℃~+100℃ |
|
Repeated Insertion |
≥500 Times |
|
A Adapter |
SC |
|
A End Polishing |
PC, UPC, APC |
|
B Adapter |
SC |
|
B End Polishing |
PC, UPC, APC |
|
Mode |
SM, OM1, OM2, OM3, OM4 |
|
Color |
Green;Blue |
|
Certification |
RoHS And IEC |
|
Other Info. Customize |
|
|
Sleeve Type: Zorconia Or Metal |
|
|
Dust Cap Color: Standard Black Or Provinding Figure To Confirm |
|
|
Dust Cap Shape: As Showed In The Figure Or Provinding Other Figure To Confirm |
|
|
Flange: Without Flange |
|
Advantage:
1. High-precision manufacturing process, high insertion and removal times, insertion loss variation <0. 20db inter change ability.
2. The isolation effect is good, effectively suppressing the noise of the connection loop, so that the signal field and the main control terminal are electrically and effectively isolated to prevent accidental damage of the main control system.
3. High-precision grinding equipment is manufactured to offset the center of the fiber. The zirconia sleeve has good optical and mechanical stability.
4. High-performance ceramic casing with good inter-plug interchangeability.
