Description
Description:
Type: SC-LC
Insertion loss: <0.2dB
Repeatability: >1000 times
Operating temperature: -25°C~85°C
Features:
1. High Return Loss
2. Exact and Stable Attenuation
3. Suitable for panel installation
4. Removable structure, easy to repair
Application:
1. Testing equipment
2. Fiber optical CATV
3. Fiber optical sensor
4. Various types of fiber
Parameter:
| Name |
China Supplier Optic Fiber Sc Sx Flange Sc Shutter Adapter |
|
Connection Locking Force |
≥70N |
|
Insertion Loss |
<0. 2dB |
|
Temperature Range |
-40℃~+100℃ |
|
Repeated Insertion |
≥500 Times |
|
A Adapter |
SC |
|
A End Polishing |
PC, UPC, APC |
|
B Adapter |
SC |
|
B End Polishing |
PC, UPC, APC |
|
Mode |
SM, OM1, OM2, OM3, OM4 |
|
Color |
Green;Blue |
|
Certification |
RoHS And IEC |
|
Other Info. Customize |
|
|
Sleeve Type: Zorconia Or Metal |
|
|
Dust Cap Color: Standard Black Or Provinding Figure To Confirm |
|
|
Dust Cap Shape: As Showed In The Figure Or Provinding Other Figure To Confirm |
|
|
Flange: Without Flange |
|

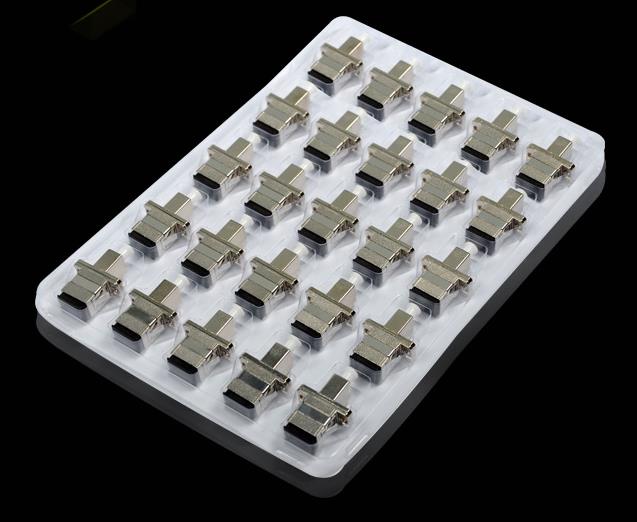

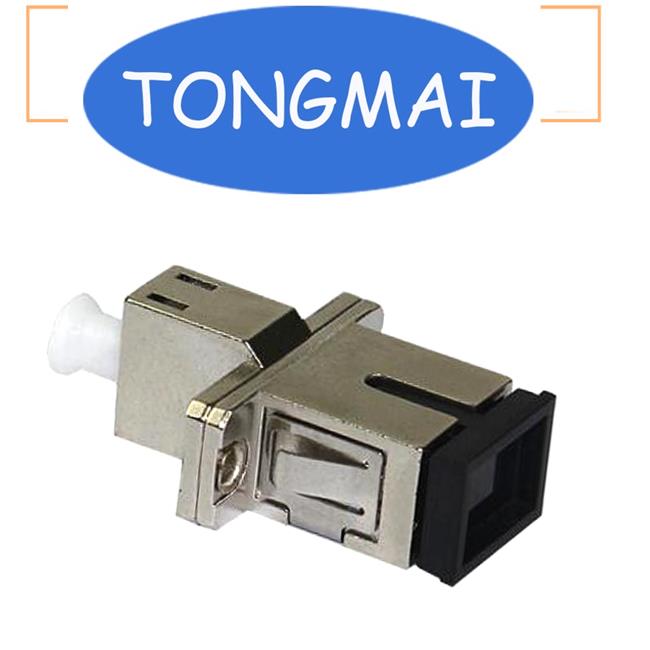

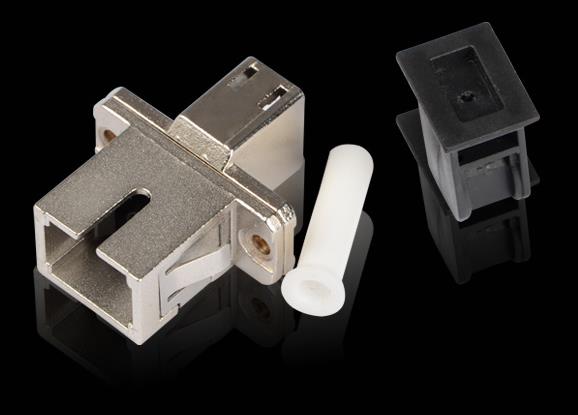

Product Show:
