Plc Splitter Without Connector
Product Description:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks
to realize optical signal power splitting. SUNET provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
Features:
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Specifications:
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1260~1650 |
|||||
|
Fiber Type |
SMF-28e or customer specified |
|||||
|
Insertion Loss (dB)(S/P Grade) |
4.0/3.8 |
7.3/7.0 |
10.5/10.2 |
13.7/13.5 |
16.9/16.5 |
21.0/20.5 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
Return Loss (dB) (S/P Grade) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40~85 ℃)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-40~85 |
|||||
|
Storage Temperature (℃) |
-40~85 |
|||||
|
Packaging Dimension (mm) (L×W×H) |
40×4×4 |
40×4×4 |
40×4×4 |
40×4×4 |
50×7×4 |
60×12×4 |
Applications:
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems

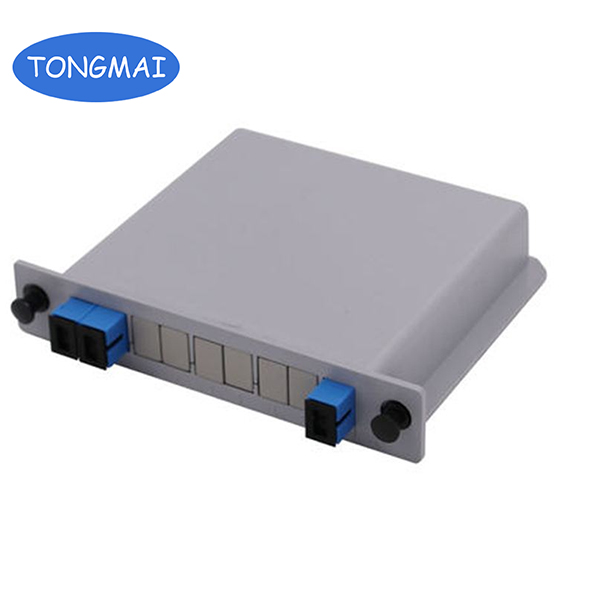

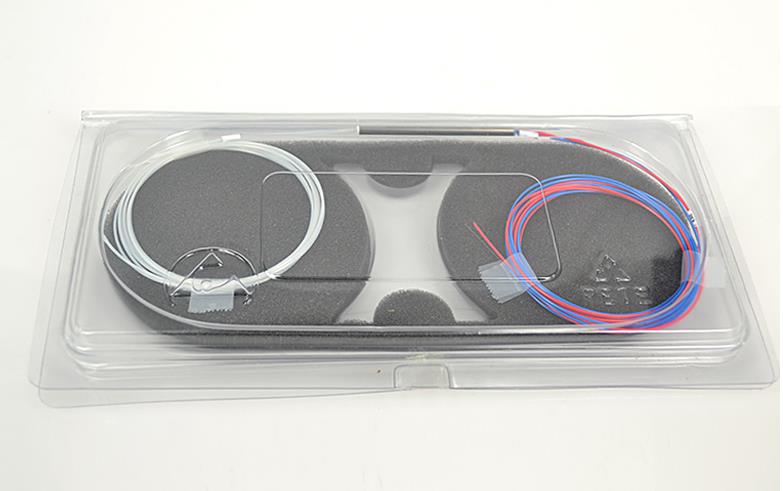

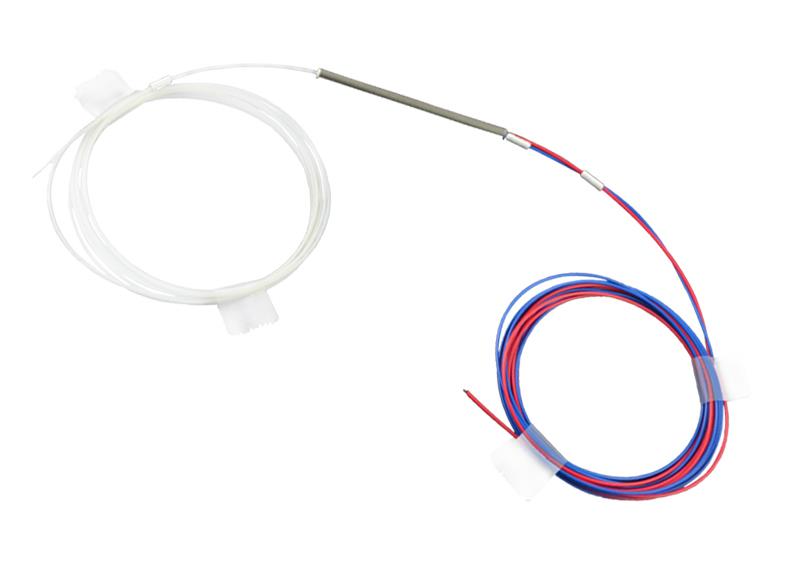

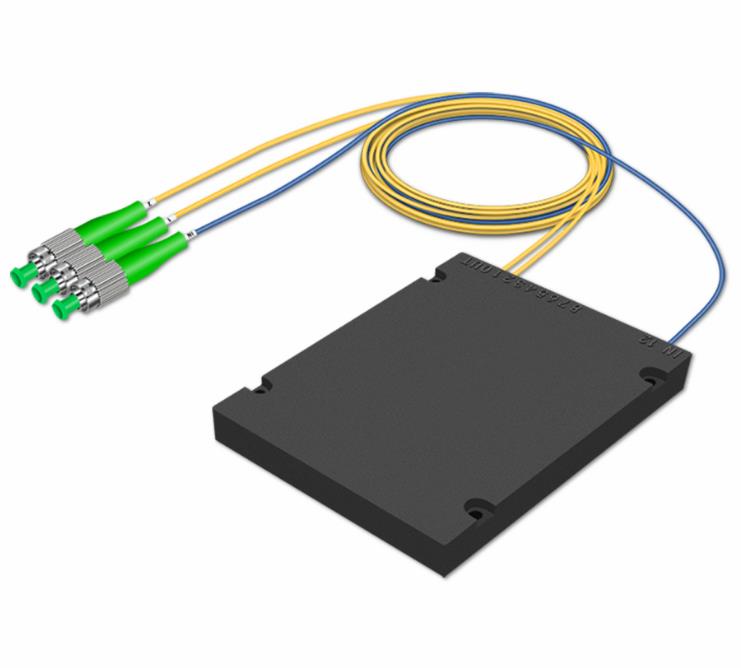

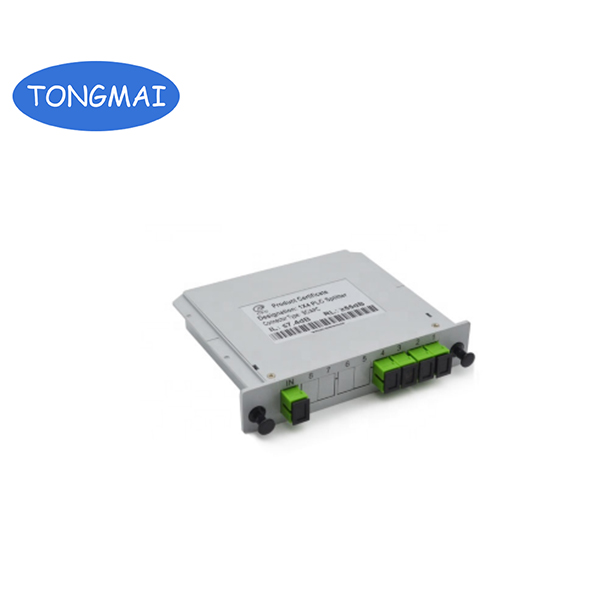

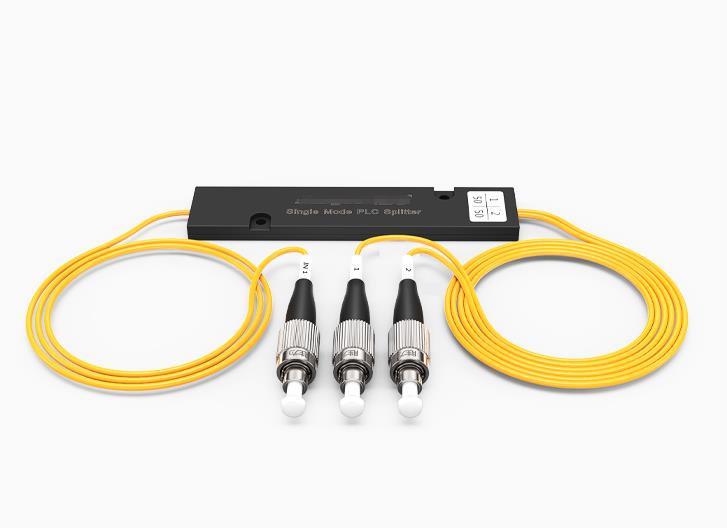

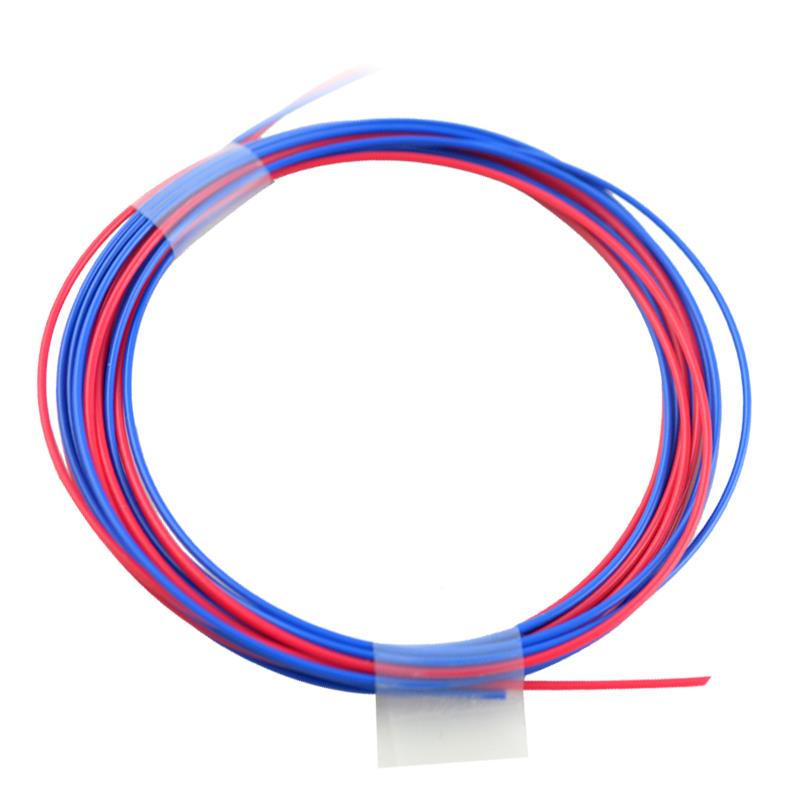

Product Image:
