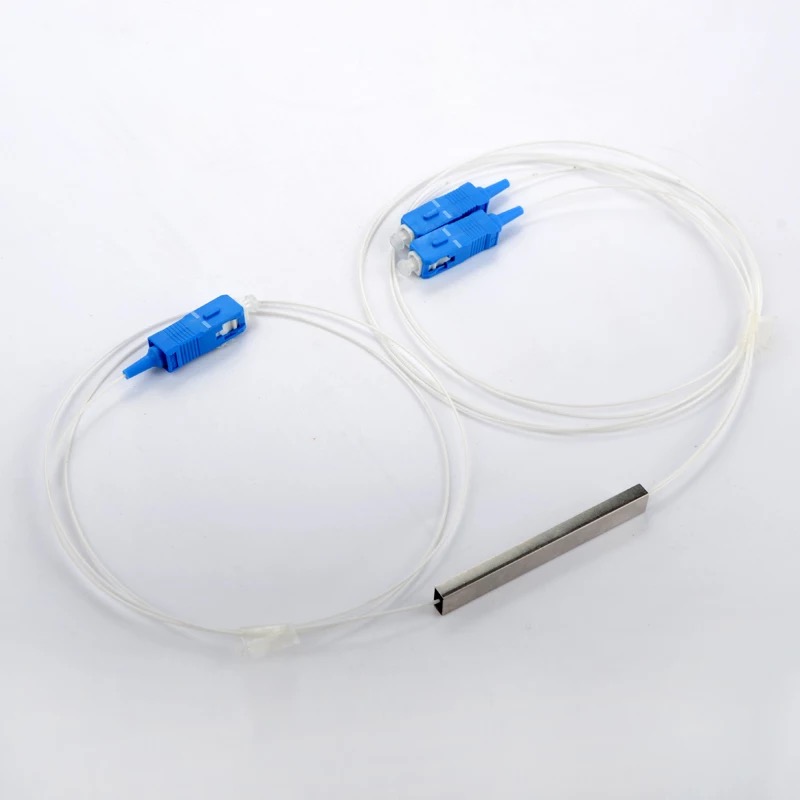

1x2 PLC Fiber Splitter SC/UPC
Description
Single Mode PLC Steel Tube type Fiber Optic Splitter (PLC Splitter) can not work with different ratio rather than it provide a accurate splitting in high-density output (like 8,16,32,64 outputs) However, The most common type of fiber optic splitter splits the output evenly, which is coming out with the same output of light signals. As a result of its great function, Optical splitter is a very important part in passive optic networks (PON).
Features
Excellent Mechanical, Small Size
High Reliability
Low insertion Loss and low Polarization Dependent loss
High channel counts
Excellent Environmental Stability and Widely Used
Applications
FTTX (FTTB, FTTH, FTTC) Systems
Cable Television (CATV)
Optical Signal Distribution
Passive Optical Network (PON)
Detailed Information
|
Items |
Options |
|
Channel |
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X2, 2X4, 2X8, 2X16, 2X32 |
|
Encapsulation Type |
Round steel tube, Mini rectangle steel package, ABS box, Card type (LGX box), Rack mounted |
|
Wavelength |
1260-1650nm |
|
Optical ratio |
Average |
|
Input/Output diameter |
0.9mm, 2.0mm, 3.0mm |
|
Jacket of Input/ Output Cable |
PVC or LSZH |
|
Connector type |
SC, LC, FC, ST, MU, DIN, E2000 and so on or without connector |
|
End Polishing |
PC, UPC(SPC) or APC |
|
Cable length |
Customized |
|
Fiber Type |
G652D or G657A or G657A2 |
|
Warranty |
10 Years |

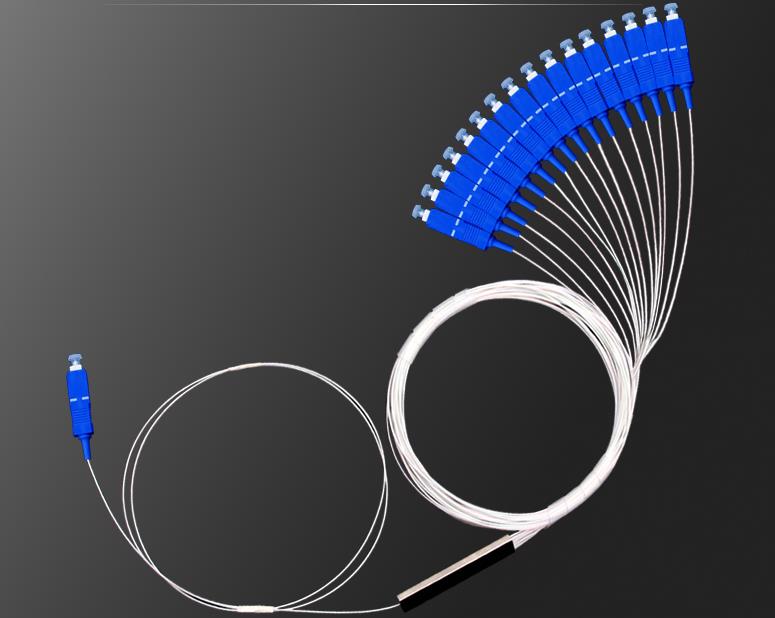

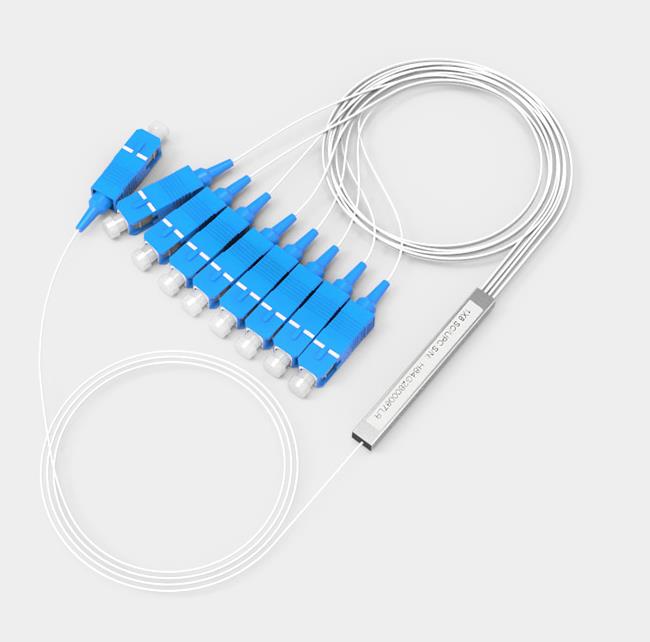

Image Detail:
