Description
Loose Tube Stranded “8” Type Steel Armored Optical Cable
Cable type：GYTC8S

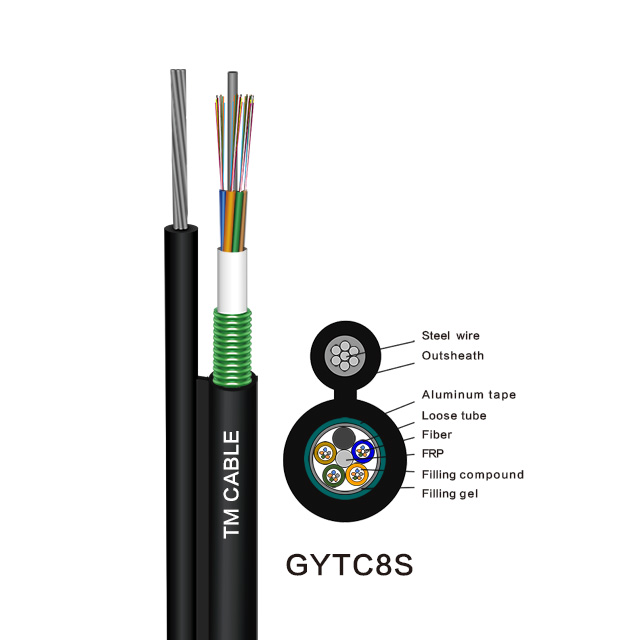

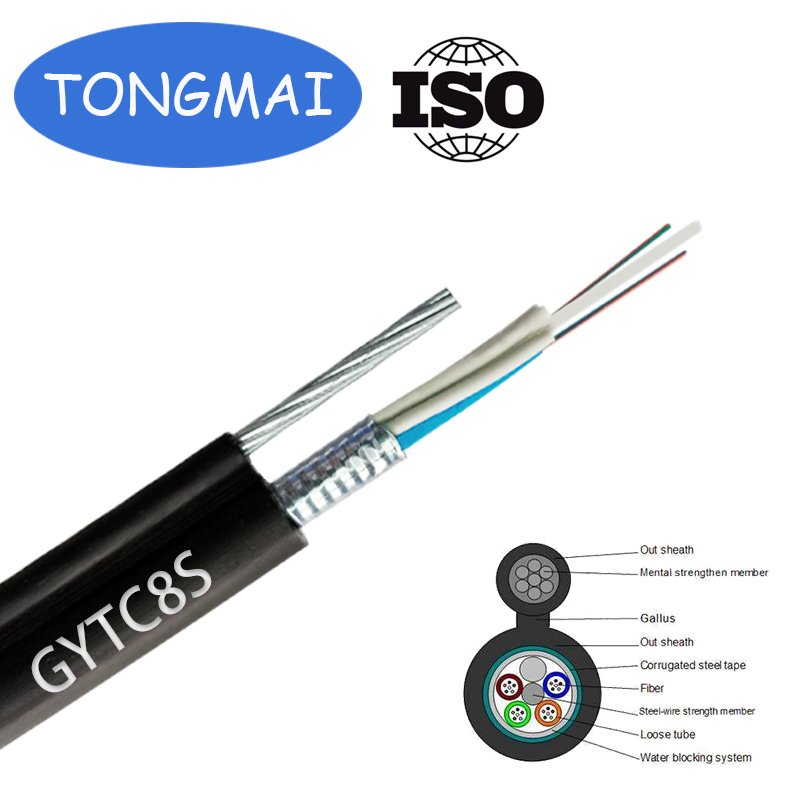

Structure diagram：
Optical Fiber Type：Optional single mode, multimode or single mode multimode combination.
Description：Metal strength member,optical fiber loose tube structure,SZ stranded, cable core filled with water blocking ointment, double-sided plastic coated steel tape bonded with “8”type PE sheath.
Laying Method：self-supporting Aerial.
Application：Suitable for long distance communication and Inter office communication.
Temperature Range：-40℃ ~ +60℃
Characteristics：
1. Reasonable design and precise control of the fiber length in the loose tube, so that the cable has excellent mechanical properties and environmental performance.
2. The outer part of the reinforcement and the core of the cable are filled with water-blocking grease to ensure the moisture-proof and water-blocking effect of the cable.
3. The cable is excellent in flexibility and bending resistance.
4. The steel belt armor is resistant to pressure and has a certain anti-ballistic ability. The steel wire is self-supporting to meet the extremely high tensile strength.
Technical Parameters：
|
Fiber Count
|
Cable Diameter(mm) |
Cable Weight (kg/km) |
Bending Radius |
Tensile Strength |
Crush Resistance (N/100mm) |
|||
|
Static |
Dynamic |
Short Term |
Long Term |
Short Term |
Long Term |
|||
|
2-30 |
16.2*8.9 |
123 |
10D
|
20D |
According to the project design |
3000 |
1000 |
|
|
32-36 |
16.5*9.2 |
127 |
||||||
|
37-60 |
17.2*9.5 |
136 |
||||||
|
62-72 |
17.9*10.2 |
145 |
||||||
|
74-96 |
19.2*11.5 |
171 |
||||||
