Description
Cable Model : GJYXFCH
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.
Application :
1. Access network
2. FTTH cable (Fiber to the home)
3. Used in indoor cabling
4.Used for parch cord or pigtail
Temperature Range : -40℃~+60℃
Optical Fiber Type : Single mode / Multimode
Characteristics :
1. Special curved optical fiber, providing greater bandwidth and enhanced network transmission characteristics.
2. Two parallel steel wire strength members ensure tensile.
3. Simple structure, light weight and strong practicality.
4. Novel flute design, easily strip and splice, simplify the installation and maintenance.
5. Low smoke, zero halogen and flame retardant sheath.

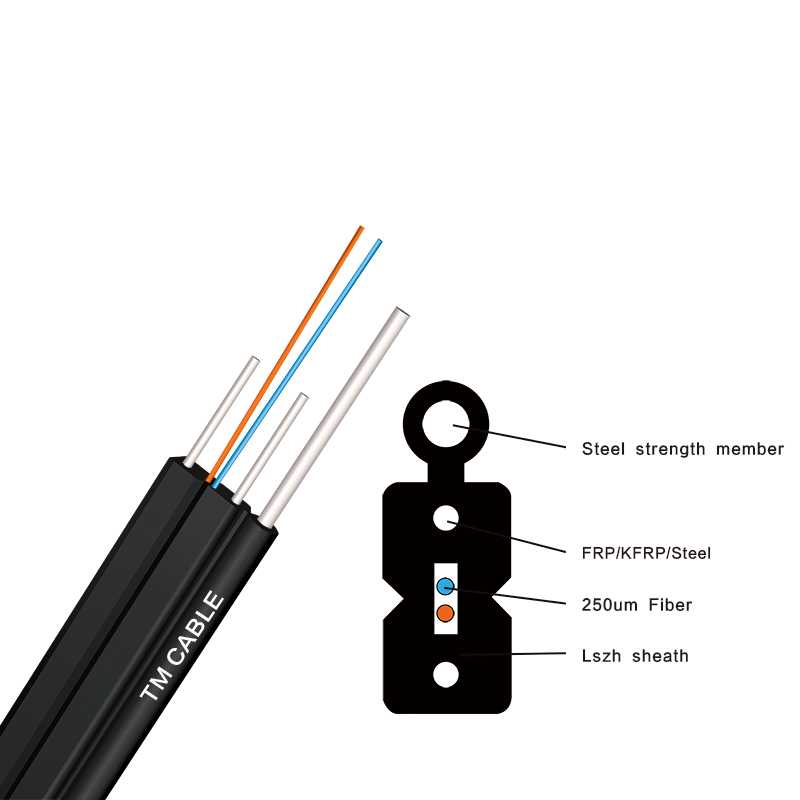

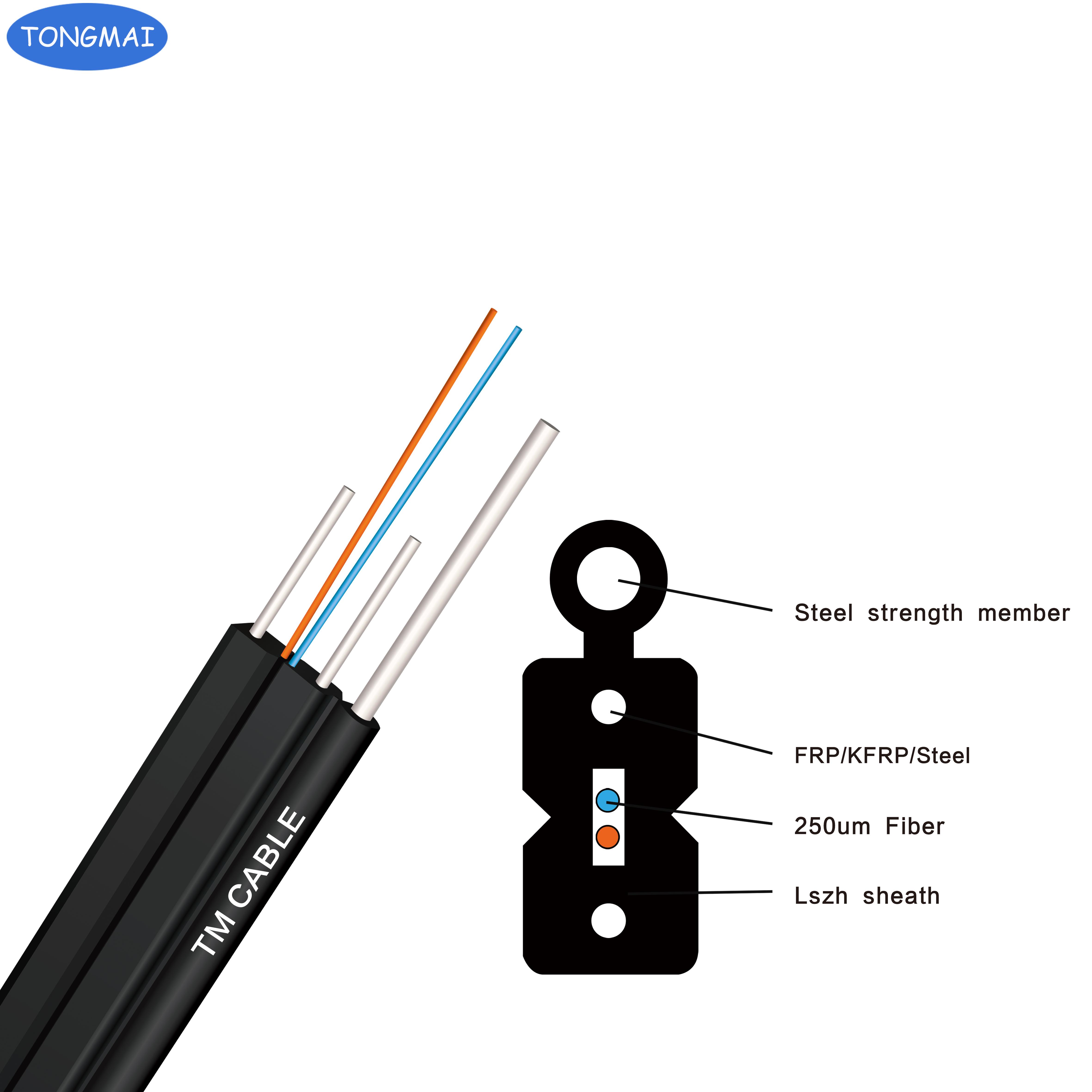

Structure Diagram :
