Description

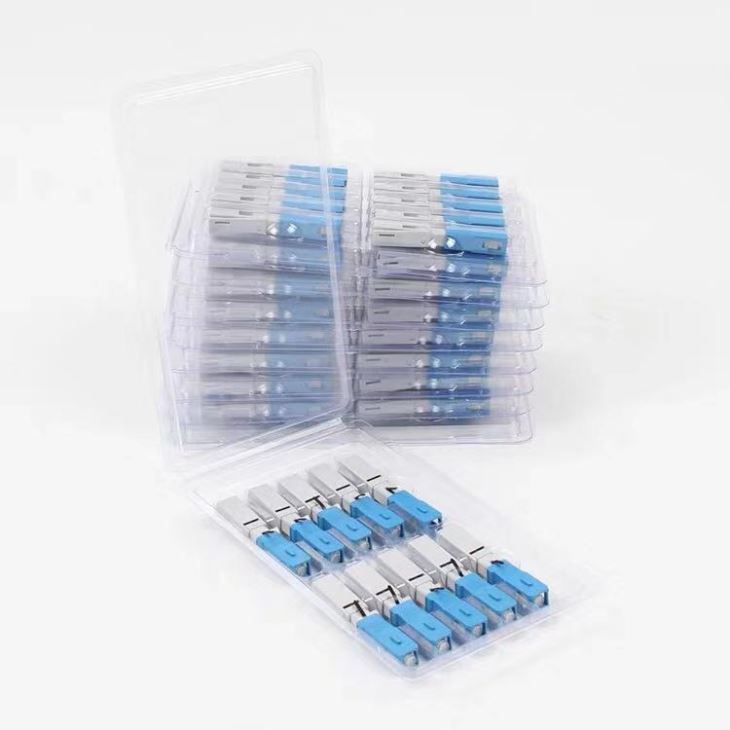

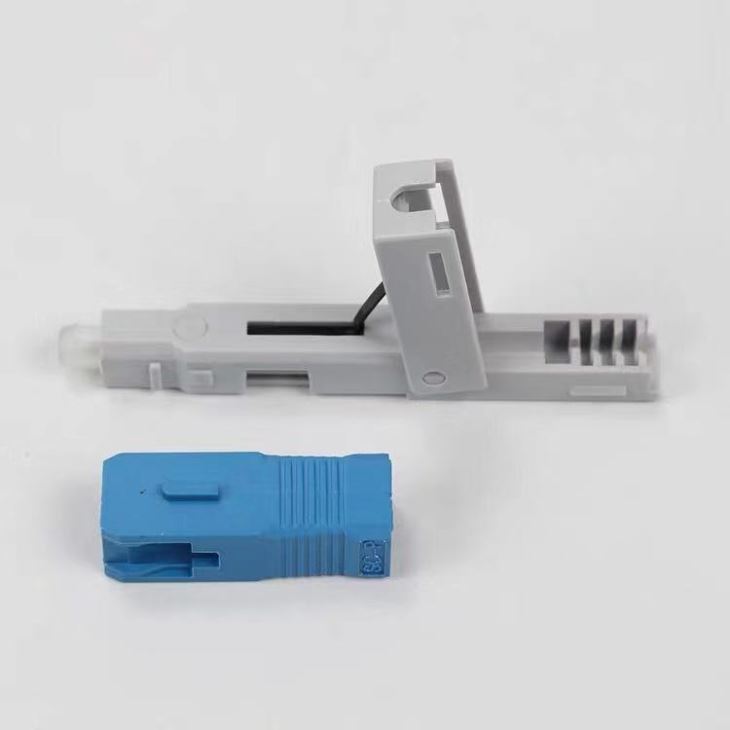

FTTH Fast Connector SC/UPC
Fast Connector is also called Field Assembly Connector, Field Installation connector, quickly assembly connector. It is designed for simple and fast field termination of single fibers,
Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode fiber and available with UPC or APC ferrules.
Features:
1. Pre-terminated fiber in the ferrule, no epoxy, curing and polishing.
2. Stable optical performance and reliable environmental performance.
3. Low cost redesign.
4. Compact size, length less than 49.5mm.
5. One-side lock, user friendly.
Specification:
|
Item |
Parameter |
|
Single-Mode |
|
|
Insertion Loss |
Max≤0.5dB , Average≤0.3dB |
|
Return Loss |
APC≥50dB;UPC≥45dB |
|
Durability (1000 Mating) |
0.2dB Max. |
|
Operating Temperature |
-40°C~+75°C |
|
Storage Temperature |
-40°C~+85°C |
Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance±0.5 um.
Applications:
1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
