Description
Cable Model : GJXH
The optical fiber unit is positioned in the central. Two parallel steel wire are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath.
Application :
1. Access network
2. FTTH cable (Fiber to the home)
3. Used in indoor cabling
4.Used for parch cord or pigtail
Temperature Range : -40℃~+60℃
Optical Fiber Type : Single mode / Multimode
Characteristics :
1. Special curved optical fiber, providing greater bandwidth and enhanced network transmission characteristics.
2. Two parallel steel wire strength members ensure tensile.
3. Simple structure, light weight and strong practicality.
4. Novel flute design, easily strip and splice, simplify the installation and maintenance.
5. Low smoke, zero halogen and flame retardant sheath.

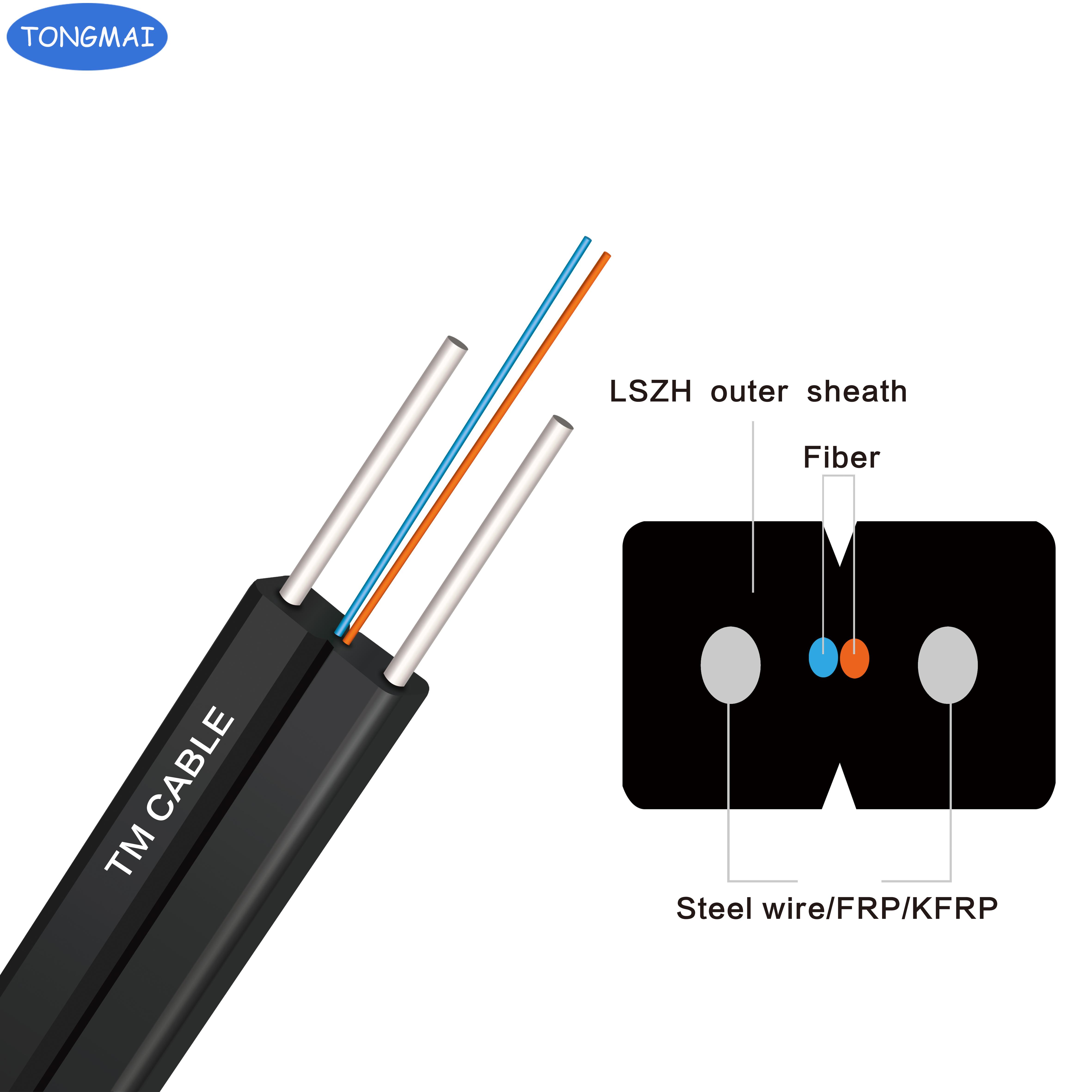

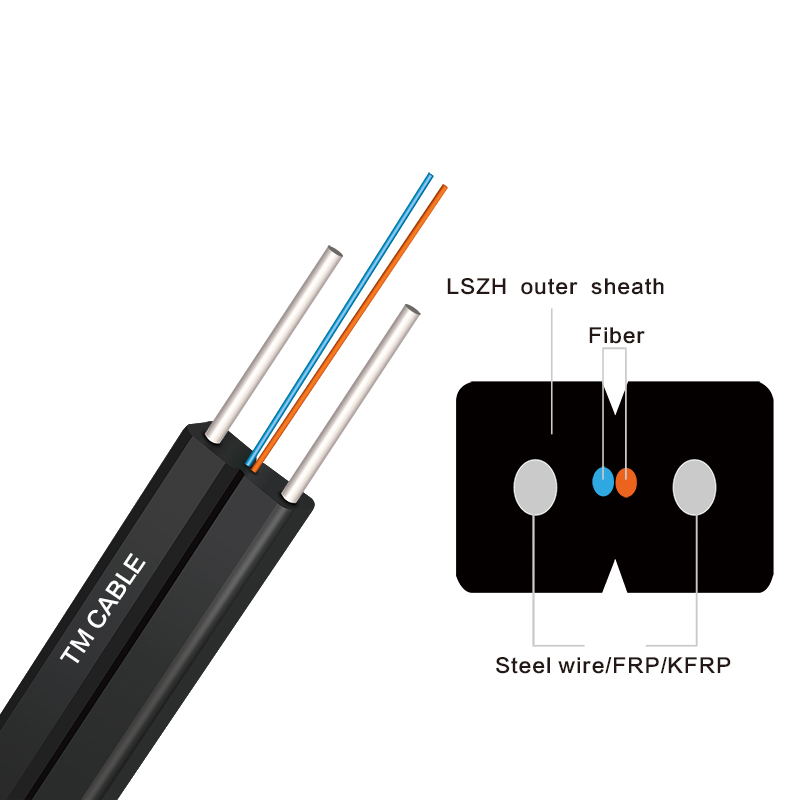

Structure Diagram :
