Description

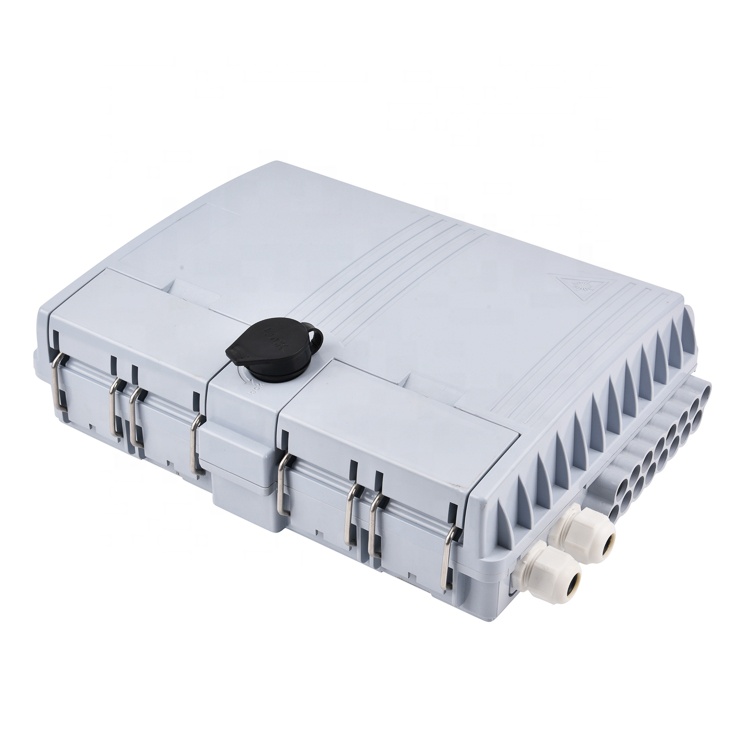

16 cores terminal box Wall mounted distribution box
Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.
Features:
- Water-proof design with IP-65 Protection level

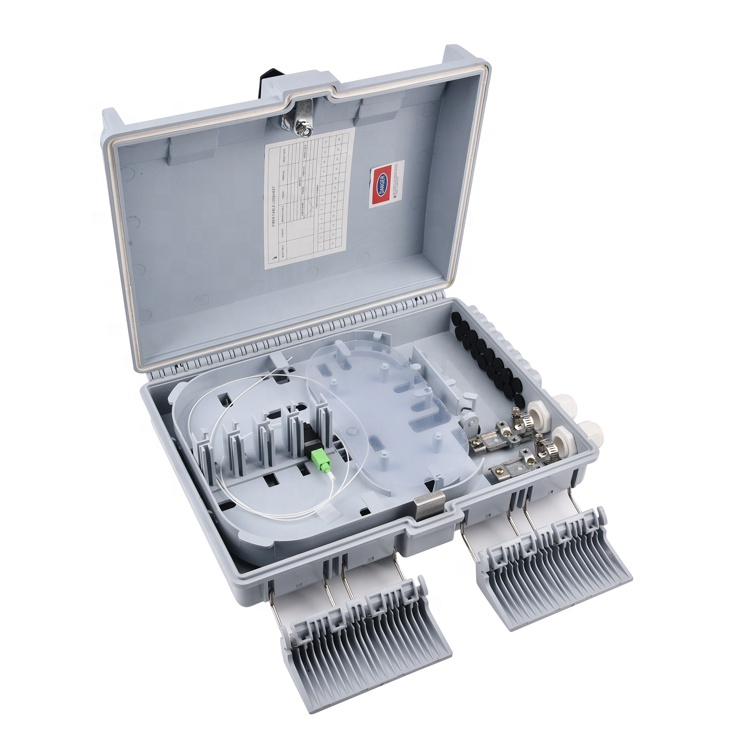

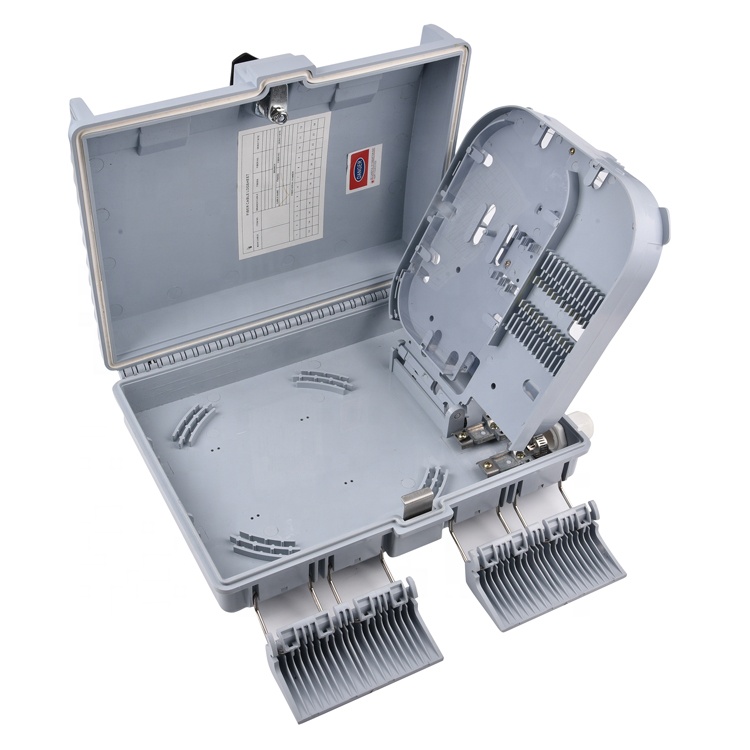

- Integrated with splice cassette and cable management rods
- Easy to maintain and extend the capacity
- Fiber bend radius control more than 40mm
- Suitable for the fusion splice or mechancial splice
- 2 pcs 1*8 PLC splitter can be installed as an option
- Efficient cable management
- 1 mid-span cable entrance for feedercable (2 ports), 16 ports for 4-7mm drop cable.
Application:
| Widely Used In FTTH Access Network | Telecommunication Networks |
| CATV Networks | Data Communication Networks |
| Local Area Networks |
|
